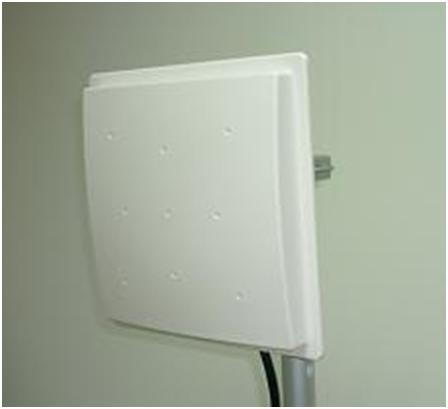

Long Distance Card Reader ( 5 Meters stable )

Proximity Card Access Control

Proximity Card Access Control

Technical Specification

1. integrated uhf rfid reader
2. long range rfid reader
3. rfid reader for parking lot

Integrated UHF RFID Reader,RS232,Wiegand26/34

Model

VI-88D/R

Dimension

450(L)*450(W)*90(H)mm

Weight

4.5KG

Operating Temp

-20°C to 60°C

Storage Temp

-30°C to 80°C

Humidity

10% to 95%

Non-condensing Enclosure

IP-65

Frequency Range

902-928MHz,865-868MHz or Customized

Operation Mode

FHSS or fixed frequency (set by software)

Reading Mode

Command, Trigger, Continuing

Read speed

32bits/6ms

Write speed

32bits/50ms

RF power control

20-30dBm

Protocol

EPC Class 1 Gen 2,ISO 18000-6B

Communication Interface

RS232/RS485/Wiegand26/34(Option:RJ45)

Power supply

External 110-220V AC,DC +9V 3A Power adapter

Antenna

Built-in 12dBi (Circular or Linear) Antenna

Reading Clue

Buzzer

Reade Range

4-5m

Introduction:

This is a popular integrated reader, Compatible with ISO18000-6C (EPC C1GEN2) and ISO18000-6B.
It is an industry grade product for harsh environment, IP-65 protection case for water-proof, easy to install.

Mainly application as follows:

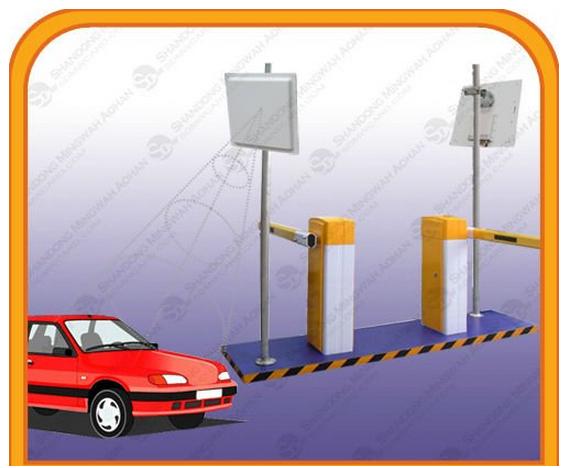

1. Parking management: Long range intelligent parking management and automatic charge without stop the car
2. Production line management: Goods identification for production flow
3. Auto Access control: Long range access control management for custom, sea port
4. Logistics and warehouse management
5. People auto registry for important meeting or exhibition
6. Automatic weighing and data capture.
